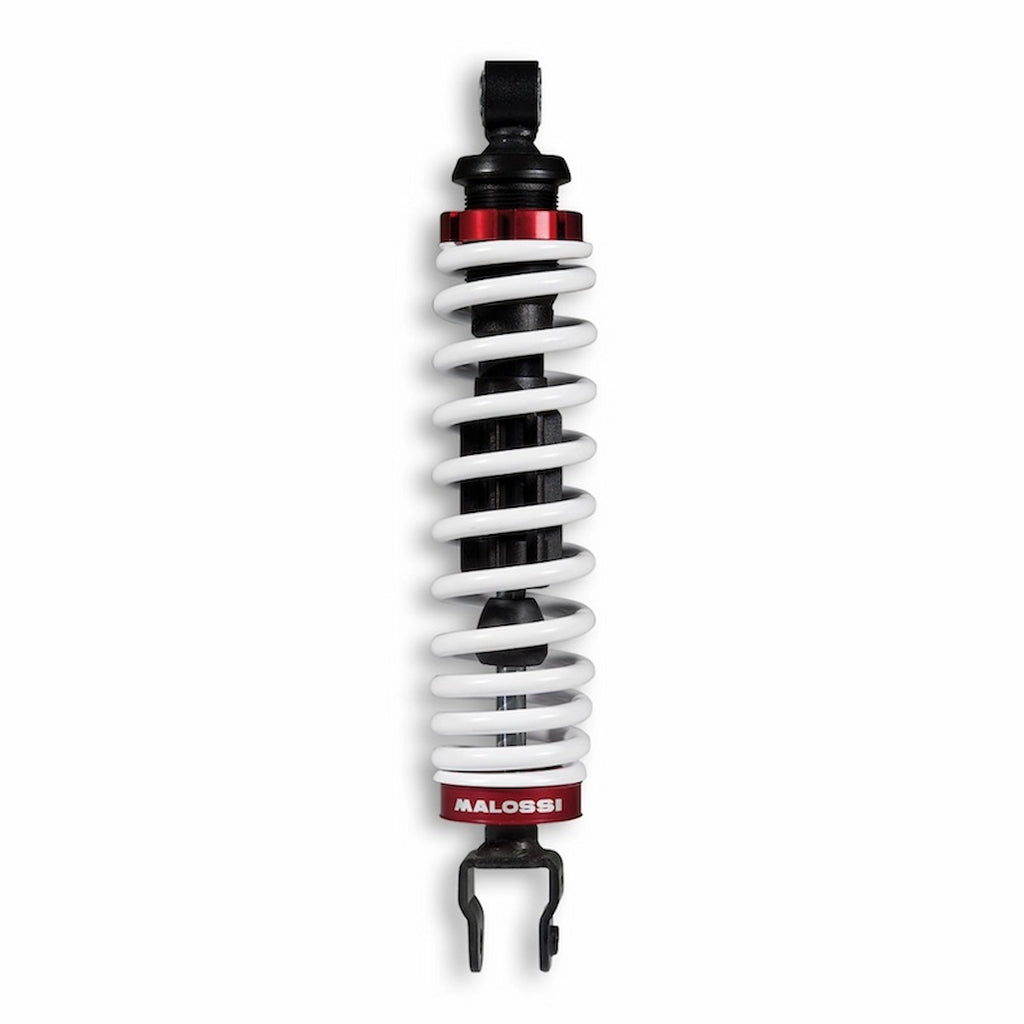

Malossi RS1 Rear Shock Absorber Minarelli

ASSEMBLY INSTRUCTIONS

Malossi RS1 MBK Booster Shock Absorber
Discover the Malossi RS1 280mm rear shock absorber designed specifically for Minarelli and Yamaha BW's. Malossi aims to offer an economical solution while ensuring high quality and improved handling. This shock absorber is ideal for daily road use, effectively replacing the original shock.

Technical specifications of the Malossi shock absorber:

• Type: Oleopneumatic with spring preload adjustment

• Optimized length for a stance that improves cornering handling

• Center-to-center distance: 280mm or 310mm

• Upper mount: 10mm

• Lower mount: 8mm / M8 thread

• Lower mounting width: 20mm


Please check the dimensions on your vehicle. The length of the shock absorber can be adjusted by 2 to 3 cm to adapt seat height or riding behavior according to personal preferences. A longer shock absorber allows for a slightly sportier ride.
