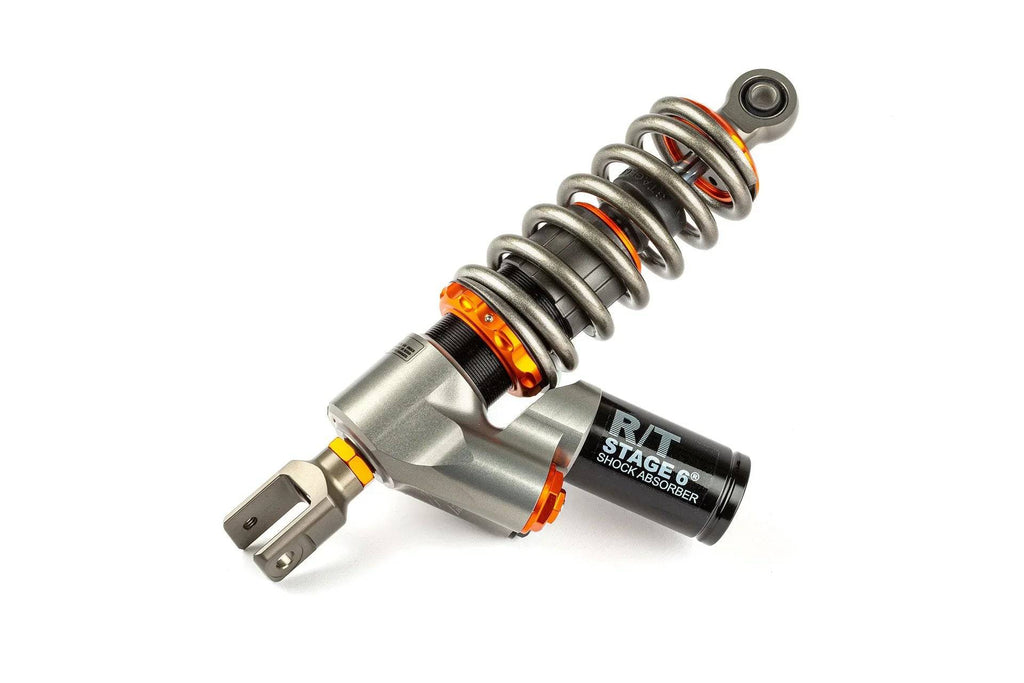

Stage6 R/T MKII Upside Down Rear Shock Absorber 285mm Minarelli

Stage6 R/T Booster, Nitro Shock Absorber 285mm
For the most demanding riders, Stage6 R/T offers its MKII Upside Down shock absorber for numerous Minarelli scooters, including the MBK Nitro, Booster, Stunt, as well as the Yamaha Aerox, Jog R, Ovetto, and many others.

This MKII Upside Down rear shock absorber for MBK / Yamaha represents Stage6 R/T's latest evolution in rear suspension. Its development was carried out in collaboration with the best European riders, who provided specific modifications, particularly to the hydraulic system.

Stage6 R/T MKII Upside Down Scooter Shock Adjustments
This 2020 version of the Stage6 R/T MKII rear shock absorber uses a hydraulic system combined with a gas reservoir, which is currently the best available. To adapt the suspension to your riding style and the track layout, it features the following adjustments:

• spring preload (via the spring base),

• compression damping (via the orange knob),

• rebound damping (via the black knob).


These adjustments will allow you to tune the shock based on rider weight, as well as the compression and rebound phases of the hydraulic cylinder. The adjustment range is optimized, meaning that a single "click" on the adjustment knob is immediately noticeable.

Additionally, you can adjust the rear height of the scooter, which will modify its stance for greater precision during braking and easier corner entry. The shock height adjustment (+ or – 40mm maximum) will allow you to adapt it and make it effective on all Minarelli engine cases.

This S6R/T shock is primarily intended for track use but can by no means prevent it from being fitted for daily use on your scooter.

Details on the 285mm Stage6 R/T scooter shock absorber:

• Length: 285mm

• Upper mount: 10mm

• Lower mount: 8mm, M8 thread

• Lower mounting width: 20mm

• Compression adjustment: 8 clicks

• Rebound adjustment: 18 clicks

• Preload adjustment: 15mm

• Color: black and orange

• Range: racing


Note: It is possible to install a shock absorber up to 30mm longer than the original to adjust the chassis stance and improve handling.
